50.003 - Node.js

Learning Outcomes

By the end of this unit, you should be able to

  1. Name the differences between frontend and backend development for web application
  2. Describe the use of a package/project manager for node.js
  3. Describe the run-time system of node.js
  4. Compare the difference between event callbacks and promises.
  5. Analyse the run-time behavior of an asynchronous node.js program

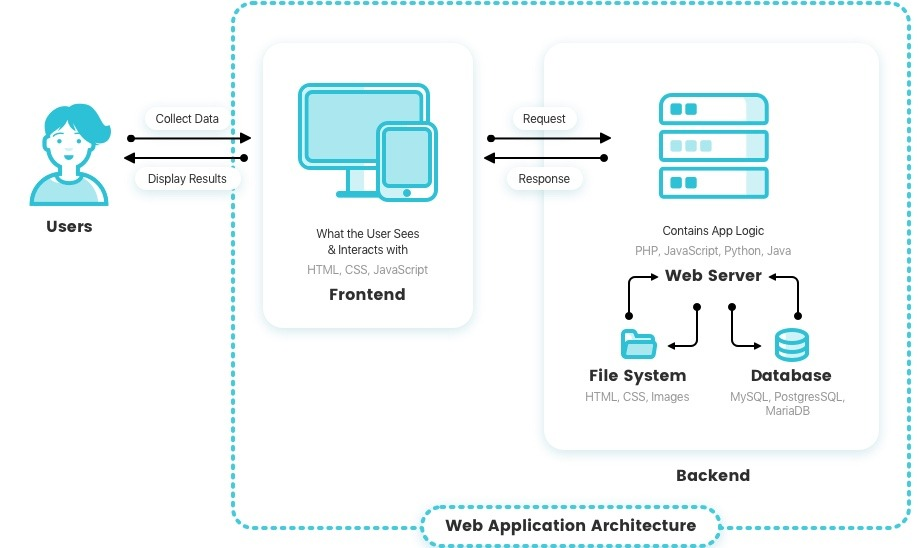

Frontend vs Backend

In many web applications, it is insufficient to run the application in the browser which is a run-time system hosted in the user's device, such as desktop, laptop or mobile phone. An obvious reason is that certain computation must not be executed on the user's device due to security and integrity, for instance, transferring balance from one account to another. These highly sensitive operations should be executed at the server ends, which is known as the "backend".

In practice, frontend deals with the end users’ input and interaction, while backend deals with the data storage, data analysis, data retrieval, business logic, authentication, and scalability

Node.js

There are many options of implementing the backend applications, e.g. Spring with Java, Django with Python, Flask with Python, Node.js with JavaScript.

Node.js is a run-time system to run JavaScript applications without the browser (and its event APIs), for instance document is no longer a predefined reference in Node.js.

Hello World

The hello world program in Node.js is not too far apart from the one in the browser.

Suppose we have a JavaScript file name hello.js with the following content,

console.log("hello");

To execute it, we need the node.js run-time to be installed, for installation, please refer to

https://nodejs.org/en/download

Then in the terminal,

node hello.js

We see the message hello, being printed in the terminal.

Since it is using the same language as the browser run-time, we will skip those common language features and focus on the difference.

Node.js Project/Package Manager

In most of the cases, we develop projects based on existing libraries, modules and packages. To better manage all these dependencies, we need a project management tool. npm is the mostly commonly used too in the node.js community. Its role is similar to pip for python and gradle for java.

To start a Node.js project,

mkdir myproj
cd myproj
npm init

To add a dependency, we type npm i package_name. For example,

npm i xhr2

where xhr2 is the library that we would like to install as a dependency for our current project. In this example, we install xhr2 library, which is useful to emulate XMLHttpRequest, an API that provides functionality for transferring data between client and server.

After executing the above command, we observe that the xhr2 library is downloaded to a temporary forder node_modules and the following

  "dependencies": {
    "xhr2": "^0.2.1"
  }

is added to the project definition file package.json.

When we clone the project to a new machine, (for development installation or deployment purpose), we can download all the dependencies defined by package.json by running

npm i

Next we would like to enable the ES6 module mode in this project. We will explain what is ES6 module mode shortly.

Use an editor to add the following entry to the package.json file.

{
  "name": "myproj",
  "version": "1.0.0",
  "description": "",
  "main": "index.js",
  "scripts": {
    "test": "echo \"Error: no test specified\" && exit 1"
  },
  "type": "module", // enable module type
  "author": "",
  "license": "ISC",
  "dependencies": {
    "xhr2": "^0.2.1"
  }
}

CommonJS vs ES6 modules

Module system allows one to put common codes in a module which can be reused by many different use sites.

For instance, consider the following JavaScript program mymath.js

const pi = 3.14159;
const e = 2.71828;

module.exports = { pi, e };

in which we define two constant variables pi and e, and export them, so that when mymath.js is being imported in another JavaScript program, these two constant variables can be reused.

Traditionally, In Common JavaScript (dubbed as CJS), we import predefined references from another JS file, via the require() function.

const mymath = require("./mymath.js");
console.log(mymath.pi);

In ES6 onwards, the following "better" syntax was instroduced,

Exporting

const pi = 3.14159;
const e = 2.71828;

export { pi, e };

Importing

import { pi } from "./mymath.js";
console.log(pi);

For the rest of this unit, we will stick to the ES6 import syntax.

Let's consider the following JavaScript program circle.js that makes use of mymath.js.

import { pi } from "./mymath.js";

class Circle {
  constructor(r) {
    this.r = r;
  }
  area() {
    return this.r ** 2 * pi;
  }
}

export default Circle;

In the above, we make use of the pi defined in mymath.js to compute the area of a Circle object. And the end of the file, we export the class definition Circle with a default modifier. Note that there can only one name to be exported if default is used. Being a default export, we do not need to surround it with {} when importing. In CommonJS (pre ES6), we write modules.export = Circle instead.

Consider the following program moduletest.js

import Circle from "./circle.js";
var circle = new Circle(10);
console.log(circle.area());

Node.js Event-loop

Like JavaScript run-time in the browser, when the main program ended, Node.js run-time goes into an event loop. Remember that events like timer, http request, data transfer, or button click can trigger callbacks. The callbacks are asynchronous and might be executed by the other threads or the nodeJS main thread itself.

The Node.js event-loop consists of the following steps, (AKA phases.)

   ┌───────────────────────────┐
┌─>│           timers          │
│  └─────────────┬─────────────┘
│  ┌─────────────┴─────────────┐
│  │     pending callbacks     │
│  └─────────────┬─────────────┘
│  ┌─────────────┴─────────────┐
│  │       idle, prepare       │
│  └─────────────┬─────────────┘      ┌───────────────┐
│  ┌─────────────┴─────────────┐      │   incoming:   │
│  │           poll            │<─────┤  connections, │
│  └─────────────┬─────────────┘      │   data, etc.  │
│  ┌─────────────┴─────────────┐      └───────────────┘
│  │           check           │
│  └─────────────┬─────────────┘
│  ┌─────────────┴─────────────┐
└──┤      close callbacks      │
   └───────────────────────────┘
  1. timers: this phase executes callbacks scheduled by setTimeout() and setInterval().
  2. pending callbacks: executes I/O callbacks deferred to the next loop iteration.
  3. idle, prepare: only used internally.
  4. poll: retrieve new I/O events; execute I/O related callbacks (almost all with the exception of close callbacks, the ones scheduled by timers, and setImmediate()); node will block here when appropriate.
  5. check: setImmediate() callbacks are invoked here.
  6. close callbacks: some close callbacks, e.g. socket.on('close', ...).

Between each run of the event loop, Node.js checks if it is waiting for any asynchronous I/O or timers and shuts down cleanly if there are not any.

Important points to note in this section are:

  1. There are several commonly used APIs that allow NodeJS to execute instructions asynchronously such as setTimeout(), setInterval(), setImmediate(), and I/O related tasks (for example, fs.writeFile(), HTTP Request and Response, or fetch() )
  2. The JS in browser's callback queue that we know before is called macrotask queue in nodeJS runtime. Except fetch(), all the APIs mentioned in the previous points enqueue callbacks into macrotask.
  3. Another type of callback queue are called microtask. Microtask has a higher priority than macrotask, meaning that all existing microtasks will be cleared before event-loop dequeue the next macrotask.
  4. Callbacks that are enqueued into microtask are resolve() or reject() functions from promise and API queueMicrotask().
  5. Now we will discuss I/O APIs callbacks (the 2nd Phase, and 4th Phase), fetch(), and promise in the next sections. You can explore the other APIs on your own.

I/O Asynchronous Callbacks in NodeJS

Let's consider an example of using network I/O,

import XMLHttpRequest from "xhr2";
var xhr = new XMLHttpRequest();
var args = process.argv;
if (args.length == 3) {
  var input = args[2];
  xhr.onreadystatechange = function () {
    if (xhr.readyState == 4) {
      var res = xhr.responseText;
      console.log(res);
    }
  };
  xhr.open("GET", `https://postman-echo.com/get?x=${input}`);
  xhr.send();
} else {
  console.log("USAGE: node index.js input");
}

Explanation:

  • The first statement, we import the XMLHttpRequest class from the package xhr2. (We don't need to import it when the code is executed in the browser as all browser has XMLHttpRequest class builtin in the run-time, but this is not the case for node.js).
  • In the second statement, we instantiate an XMLHttpRequest request object.
  • In the third line, we read the command line arguments into a variable args. Remember that we can pass the argument when executing the file. For example, if the filename is index.js, then we can execute node index.js abcd in the terminal. In this example, abcd is the command line argument.
  • The following if-else statement checks whether the user supplies an argument. The node and index.js are counted, so the length must be 3.
  • In the if body, we extract the third argument, which will be used as the input parameters in the API call.
  • Before calling the API, we set-up a callback in the event of the HTTP Request state is changed. As we discussed earlier, the node.js run-time has an event loop, which periodically checks for events (Phase 4). In this case, the change of state in the XMLHttpRequest object is one of the events it is checking. When the event occurs, i.e. the state of the object changes, the callback function will be placed in the callback queue. When the main call stack is empty, the callback will be put into the call stack for execution. Read about .onreadystatechange here and readyState property here. Basically, HTTP request has several states, and the last state is state 4 (DONE) which means that the data transfer has been completed (response received) or failed.
  • In the callback function, we check whether the state is 4, which stands for DONE. When the call is done, we extract the response text and print it out.

  • After setting up the callback function, we open the request and submit it. In this example, we send a request to postman-echo which allows us to test sending a request as a client. The API will return a JSON response.

  • If we execute this script, we will observe the API request's response being printed on the command line.

Next let's consider another example that interacts with file system via the node:fs library (which is a builtin module).

import { writeFile } from "node:fs";
const txt = "hello";
writeFile("save.txt", txt, (err) => {
  if (err) throw err;
  console.log("The file has been saved!");
});

Explanation:

  • At line 2, we define the text data to be written to the file.
  • At line 3, we write the result to a file named save.txt, note that writeFile() takes three arguments. The last argument is a callback function, whose argument err is potentially an error. In this case, when the error is present, we propagate the error by throwing it as an exception, otherwise, we print a message.

Callback Pyramid

Let's say now we would like to combine the two examples, first we would like to make an API call, when the call is returned successfully, we save the result of the API call into a file.

import XMLHttpRequest from "xhr2";
import { writeFile } from "node:fs";

var xhr = new XMLHttpRequest();
var args = process.argv;
if (args.length > 2) {
  var input = args[2];
  xhr.onreadystatechange = function () {
    if (xhr.readyState == 4) {
      var res = xhr.responseText;
      writeFile("api_result.txt", res, (err) => {
        if (err) throw err;
        console.log("The file has been saved!");
      });
    }
  };
  xhr.open("GET", `https://postman-echo.com/get?x=${input}`);
  xhr.send();
} else {
  console.log("USAGE: node index.js input");
}

Note that we have to "embed" the routine of writing the result res into a file api_result.txt deep inside the callback of xhr request, the writeFile() call itself has another callback. If we have many asynchronous steps following one another, the code will become complicated and hard to read.

Promise

Promise is a builtin class in JavaScript, which allows us to build a sequence of asynchronous tasks without nesting call-backs.

A Promise object can be instantiated by passing in a function as argument. This function argument is called the executor. An executor function is a higher order function that takes two functions as arguments, commonly named as resolve and reject. resolve is applied to the result of the promise during normal execution, reject is applied when some error occurs. The function body of executor is executed synchronously while resolve and reject are asynchronous and queued into microtask. Look at the simple Promise example below which is not using reject, but only resolve.

// executor is executed synchronously when promise object is initialized with "new" keyword.
// Console will print "Hello" when this code below is run
let alwaysWork = new Promise(function (resolve, reject) {
  console.log("Hello");
  resolve();
});

// resolve() and reject() functions are the argument passed to .then() or .catch()
alwaysWork.then(() => console.log("Comes later"));

Explanations:

  • function (resolve, reject) { console.log("Hello"); resolve(); is the executor.
  • We can think of Promise in JS as this way: "I want to run a piece of code (everything defined inside executor, synchronously). At the end of the code execution, I will either reach a success or failed state. If success, I would like to execute the resolve() function, otherwise I will execute reject(). I don't know yet what is the resolve() function. It will be provided when a function is passed as an argument to .then(). Same thing for reject(), which depends on function passed to .catch()".
  • In the example above, we use the anonymous function for resolve(), which is () => console.log("Comes later"). This function is queued into microtask.
  • However, it is logical that resolve() or reject() can be a code that queues task to macrotask (e.g. you can have setTimeout() inside the function argument for .then())

Let's consider a more complicated example using Promise.

function asyncCounter() {
  var count = 0;
  return new Promise((resolve, reject) => {
    resolve(count);
  });
}

function incr(count) {
  console.log(count);
  return new Promise((resolve, reject) => {
    resolve(++count);
  });
}

let counter = asyncCounter();

counter.then(incr).then(incr).then(incr);

Explanation:

  • In the above we instantiate an asynchronous counter by calling the function asyncCounter(), which initializes a local variable count and return a promise object that immediately resolve with the variable.
  • Do you notice that we use closure here?
  • Next we invoke .then method of this counter (promise) three times. We can chain the invocation because, .then method takes a method and returns a new promise. In this case, we use the incr function as the argument of .then. In the incr function, we print the count variable and return the new promise while incrementing count by 1.
  • Fun-but-important fact: you can simply write the return statement of incr() function as return ++count;. JavaScript intrisically turn the returned value as a promise object resolved with returned value. We use this approach sometimes in the notes.

When we execute the above we will see the following printed on the terminal.

0
1
2

Now let's make some changes so that the we will stop incrementing the counter when a limit is reached. We modify the incr() function as follows,

// definition of asyncCounter() remains unchanged.
function incr(count) {
  console.log(count);
  return new Promise((resolve, reject) => {
    if (count > 1) {
      reject("limit reached");
    } else {
      resolve(++count);
    }
  });
}

In the above, incr returns a new promise object which does not always resolve with ++count. In the event that the current count value is greater than 1, it will reject the rest of the computation, by applying reject.

Now coming back to the use of the counter, we chain it with incr 4 times, followed by a call to a catch() method invocation and consumes the error raised by any of the reject function call.

let counter = asyncCounter();

counter
  .then(incr)
  .then(incr)
  .then(incr)
  .then(incr)
  .catch((reason) => console.log(`rejected: ${reason}.`));

calling the above, we have

0
1
2
rejected: limit reached.

You might argue that we don't experience any asynchronousness here.

Let's modify the example by attaching a prefix to the message printed by the incr function and creating a second counter.

function asyncCounter() {
  var count = 0;
  return new Promise((resolve, reject) => {
    resolve(count);
  });
}

function incr(id) {
  return function (count) {
    console.log(`${id}:${count}`);
    return new Promise((resolve, reject) => {
      if (count > 1) {
        reject("limit reached");
      } else {
        resolve(++count);
      }
    });
  };
}

let counter1 = asyncCounter();

counter1
  .then(incr("c1"))
  .then(incr("c1"))
  .then(incr("c1"))
  .catch((reason) => console.log(`rejected: ${reason}.`));

let counter2 = asyncCounter();

counter2
  .then(incr("c2"))
  .then(incr("c2"))
  .then(incr("c2"))
  .catch((reason) => console.log(`rejected: ${reason}.`));

setImmediate(() => console.log("tick!"));
console.log("main done!");

In the 2nd last statement, we call setImmediate which prints a tick! message at the next event loop cycle. Note that setImmediate() queue the callback to macrotask. When executing the above example, we observe

main done!
c1:0
c2:0
c1:1
c2:1
c1:2
c2:2
rejected: limit reached.
rejected: limit reached.
tick!

It reveals that the execution of the incr method calls for both promise objects are interleaved. The tick message shows that all these happens in one single event loop cycle because all the microtask from promise are executed before dequeueing macro task from the setImmediate(). We will discuss what happen behind the scene in the next section.

Node.js run-time model

Browser vs NodeJS runtime (revisit)

Recall from the previous class, we studied the JavaScript run-time in the browser, which has a call stack, a heap, an event registry and a callback queue.

  1. The run-time executes the JavaScript main program in the call stack until no more stack frame left, and goes into the event loop.
  2. When there is an event triggered, the callback function associated with the event (in the event registery) will be added to the callback queue.
  3. In an event loop cycle, when there is no more frame in the call stack but there is some item in the call back queue, the run-time will dequeue the callback from the queue and add it to the call stack.

In node.js runtime model, there are two callback queues:

  1. The macro task queue, which is same as the callback queue that stores callback associated with events.
  2. The micro task queue, which stores callbacks associated with promises.

Given that promises are special builtin of node.js run-time, they are treated "differently" when executed. When a promise is instantiated, its executor function is executed upto the resolve(...) (or reject(...)) statement. The call of resolve(...) (or reject(...)) is enqueued into the microtask queue. In an event loop cycle, when the call stack is empty, the run-time checks whether the microtask queue contains any item before checking the macrotask queue.

Callstack & Callback Queue Analysis of code execution in Node.js

We illustrate the execution of the last example in the following table, for simplicity, we omit the event registry table, and the macrotask queue. We are interested in the program counter, the call stack, the microtask queue, and the list of promises. We also paste the code here with line numbers to help us in the analysis.

1: function asyncCounter()  {
2:     var count = 0;
3:     return new Promise( (resolve, reject) => {
4:         resolve(count);
5:     });
6: }
7:
8: function incr(id) {
9:     return function (count) {
10:        console.log(`${id}:${count}`);
11:        return new Promise((resolve, reject) => {
12:            if (count > 1) {
13:                reject("limit reached");
14:            } else {
15:                resolve(++count);
16:            }
17:        });
18:    };
19:}
20:
21: let counter1 = asyncCounter();
22:
23: counter1
24:    .then( incr("c1") )
25:    .then( incr("c1") )
26:    .then( incr("c1") )
27:    .catch( (reason) => console.log(`rejected: ${reason}.`))
28:
29: let counter2 = asyncCounter();
30:
31: counter2
32:    .then( incr("c2") )
33:    .then( incr("c2") )
34:    .then( incr("c2") )
35:    .catch( (reason) => console.log(`rejected: ${reason}.`))
36:
37: // setImmediate(() => console.log("tick!"));
38: console.log("main done!")
line num call stack micro queue promises
21 [main] [] {}
1 [main, asyncCounter] [] {}
3 [main, asyncCounter] [] {promise@21}
23 [main] [] {promise@21}
8-9 [main, incr] [promise@21.resolve(0)=incr("c1")(0) ] {promise@21}
23 [main] [promise@21.resolve(0)=incr("c1")(0) ] {promise@21}

In the above we show the execution of the program from line 1 to line 27.

  1. Line 1 defines function aysncCounter
  2. Line 8 defines function incr.
  3. Line 21, asyncCounter() is invoked, the program counter moves back to line 2 then line 3,
  4. Line 3, a promise object promise@21 is instantiated, its body is executed upto the call to resolve, since at this stage, we are not sure what the resolve function could be. We add promise@21 to the set of promises. We added the suffix @21 to indicate that the promise object was instantiated and with reference at line 21. This helps us to reason about the execution.
  5. Line 23, promise@21 is being chained with .then(incr("c1")), we first move the program pointer back to line 8-9 and compute incr("c1"), which add the function call to call stack
  6. Line 9, we return a function, this function will be the resolve function of the promise@21 object. One may ask what about the reject function of the same promise object, since in this case the reject is never used, we could omit it. To be precise, we can say that it can be an identity reject function. js (err) => new Promise((resolve, reject) => reject(err)); We are done with the call incr("c1") and return to the call site Line 24. It is another chain with .then. However the value to be produced here is the result of a task from the microtask queue, which is not executed yet so we skip the rest of the .then()s. If we continue to execute the rest of the program (ignoring lines 37-38), we will end up with
program counter (line num) call stack micro queue promises
29 [main()] [promise@21.resolve(0)=incr("c1")(0) ] {promise@21}
1 [main(), asyncCounter()] [promise@21.resolve(0)=incr("c1")(0)] {promise@21}
3 [main(), asyncCounter()] [promise@21.resolve(0)=incr("c1")(0)] {promise@21, promise@29}
31 [main()] [promise@21.resolve(0)=incr("c1")(0)] {promise@21, promise@29}
8-9 [main(), incr()] [promise@21.resolve(0)=incr("c1")(0), promise@29.resolve(0)=incr("c2")(0) ] {promise@21, promise@29}
31 [main()] [promise@21.resolve(0)=incr("c1")(0), promise@29.resolve(0)=incr("c2")(0) ] {promise@21, promise@29}
eof [] [promise@21.resolve(0)=incr("c1")(0), promise@29.resolve(0)=incr("c2")(0) ] {promise@21, promise@29}

At this stage, the call stack is empty, the node.js run-time dequeues the first task from the micro task queue, i.e. promise@21.resolve(0). incr("c1")(0) prints c1:0, generates a new promise promise@24 (because the promise object will be returned to the chaining at line 24).

program counter (line num) call stack micro queue promises
9-18 [function@9(0)] [ promise@29.resolve(0)=incr("c2")(0) ] {promise@21, promise@29, promise@24}

Since the promise at line 24 become known, the .then(incr("c1")) at line 25 can provide the function to resolve the promise of line 24 and enqueue the function to the micro queue.

program counter (line num) call stack micro queue promises
25 [] [ promise@29.resolve(0)=incr("c2")(0), promise@24.resolve(1)=incr("c1")(1) ] {promise@21, promise@29, promise@24}

Since the call stack is empty, we dequeue the next item from micro task queue, which is

program counter (line num) call stack micro queue promises
9-18 [function@9(0)] [ promise@24.resolve(1)=incr("c1")(1) ] {promise@21, promise@29, promise@24, promise@32}

Since the promise at line 32 become known, thanks to the .then(incr("c2")), we resolve the promise at line 32 and enqueue to the micro queue.

program counter (line num) call stack micro queue promises
33 [] [ promise@24.resolve(1)=incr("c1")(1), promise@32.resolve(1)=incr("c2")(1) ] {promise@21, promise@29, promise@24, promise@32}

By repeating the similar steps, we get

c1:0
c2:0
c1:1
c2:1
c1:2
c2:2
rejected: limit reached.
rejected: limit reached.

Mixing callbacks and promises

Returning to the earlier example with API call and file write operations, we now can rewrite the example as follows by introducing promises.

1: import XMLHttpRequest from 'xhr2';
2: import { writeFile } from 'node:fs';
3:
4: var xhr = new XMLHttpRequest();
5: var args = process.argv;
6: if (args.length > 2) {
7:     var input = args[2];
8:     let apiPromise = new Promise( (resolve, reject) => {
9:         xhr.onreadystatechange = () => {
10:            if (xhr.readyState == 4) {
11:                var res = xhr.responseText;
12:                resolve(res);
13:            }
14:        };
15:        xhr.open('GET', `https://postman-echo.com/get?x=${input}`);
16:        xhr.send();
17:    });
18:
19:    function feedResultToFile(result) {
20:        return new Promise(  (resolve, reject) => {
21:            writeFile('api_result.txt', result, (err) => {
22:                if (err) {
23:                    reject(err);
24:                } else {
25:                    resolve('The file has been saved!');
26:                }
27:            });
28:        });
29:    }
30:    apiPromise
31:        .then(feedResultToFile)
32:        .then( (res) => console.log(res))
33:        .catch((err) => console.log(err)) ;
34:} else {
35:    console.log("USAGE: node api_fs_callback_2nd_attempt input");
36:}
Copy the code without the line number here
import XMLHttpRequest from "xhr2";
import { writeFile } from "node:fs";

var xhr = new XMLHttpRequest();
var args = process.argv;
if (args.length > 2) {
  var input = args[2];
  let apiPromise = new Promise((resolve, reject) => {
    xhr.onreadystatechange = () => {
      if (xhr.readyState == 4) {
        var res = xhr.responseText;
        resolve(res);
      }
    };
    xhr.open("GET", `https://postman-echo.com/get?x=${input}`);
    xhr.send();
  });

  function feedResultToFile(result) {
    return new Promise((resolve, reject) => {
      writeFile("api_result.txt", result, (err) => {
        if (err) {
          reject(err);
        } else {
          resolve("The file has been saved!");
        }
      });
    });
  }
  apiPromise
    .then(feedResultToFile)
    .then((res) => console.log(res))
    .catch((err) => console.log(err));
} else {
  console.log("USAGE: node api_fs_callback_2nd_attempt input");
}

First we wrap the API call into a promise, apiPromise, which is chained with a resolve function feedResultToFile, in which we wrap the operation of writing into the a file into another promise. When the above is executed,

line num call stack micro queue promises macro queue event reg
8 [main()] [] {promise@8} []
9 [main()] [] {promise@8} [] {xhr.readystatechange : function@9 }
15,16 [main()] [] {promise@8} [] {xhr.readystatechange : function@9 }
30 [main()] [] {promise@8} [] {xhr.readystatechange : function@9 }
eof [] [] {promise@8} [] {xhr.readystatechange : function@9 }

When the program counter is at line 8, we instantiate a promise, which is unresolved. At line 9, we register the xhr.headystatechange event with a callback function function@9. At lines 15-16, we are setting up the API calls and send the request, which does not affect the micro nor macro queues. At line 30, though we see a .then() chaining with promise@8, however, promise@8 is not yet resovled until function@9 is called. Hence we skip the rest. At the end of the JavaScript program, the call stack is empty and the microtask queue is also empty. Suppose at this moment, xhr's readystatechange event is triggered, and function@9 will be added to the call stack. Suppose xhr.readyState == 4 and the responseText is hello.

line num call stack micro queue promises macro queue event reg
eof [] [] {promise@8} [function@9] {xhr.readystatechange : function@9}
9 [function@9()] [] {promise@8} [] {xhr.readystatechange : function@9}
11,12 [function@9()] [] {promise@8} [] {xhr.readystatechange : function@9}
31 [] [promise@8.resolve("hello") = feedResultToFile("hello")] {promise@8} [] {xhr.readystatechange : function@9}

We put the function@9 to call stack and execute it, which in term resolves promise@8. Then we proceed to line 31 .then(feedResultToFile) as promise@8 is resolved, in which promise@8.resolve is enqueued to the microtask queue. When function@9 finishes, the run-time will dequeue promise@8.resolve and put feedResultToFile("hello") into the call stack to execute, which generate a promise promise@31. The executor calls writeFile() API which queues a callback into macrotask. Assume that all promise will resolve, we will get the desired behavior.

line num call stack micro queue promises macro queue event reg
19 [feedResultToFile("hello")] [] {promise@8} [] {xhr.readystatechange : function@9}
20 [feedResultToFile("hello")] [] {promise@8, promise@31} [] {xhr.readystatechange : function@9}
21 [feedResultToFile("hello")] [] {promise@8, promise@31} [fs.writeFile:function@21] {xhr.readystatechange : function@9}
eof [] [] {promise@8, promise@31} [fs.writeFile:function@21] {xhr.readystatechange : function@9}
21 [function@21] [] {promise@8, promise@31} [] {xhr.readystatechange : function@9}
32 [] [promise@31.resolve(res) = (res) => console.log(res)] {promise@8, promise@31} [] {xhr.readystatechange : function@9}
32 [(res) => console.log(res)] [] {promise@8, promise@31} [] {xhr.readystatechange : function@9}
eof [] [] {promise@8, promise@31} [] {xhr.readystatechange : function@9}

In this example, we see how promises (micro tasks) and event callbacks (macro tasks) being executed together. Observe that o.then(f) chaining is pending until the promise object o is resolved, then o.resolve=f is enqeueued into the microtask queue. When the call stack is empty, the run-time tries to look into the microtask queue before checking the macrotask queue.

Full of promises

For ease of use, many node.js libraries provides both callback (lower level) and promise (higher level) APIs, some even provides synchronous APIs. For instance, node:fs library offers all three types of APIs.

Unfortunatately, xhr2 is one of those that do not provide promise APIs. To rewrite the earlier example using promise API only, we replace xhr2 with node-fetch. The fetch() API returns a promise.

import fetch from "node-fetch";
import { promises } from "node:fs";

var args = process.argv;
if (args.length > 2) {
  var input = args[2];
  let apiPromise = fetch(`https://postman-echo.com/get?x=${input}`);
  apiPromise
    .then((response) => response.text())
    .then((text) => promises.writeFile("api_result.txt", text))
    .then((res) => {
      console.log("The file has been saved!");
      return res;
    })
    .catch((err) => console.log(err));
} else {
  console.log("USAGE: node api_fs_call_back_3rd_attempt input");
}

Some notes to help you understand the code above:

  • response is an HTTP response object as the result of resolved promise of `fetch()
  • response.text() actually returns a promise, reading the data streams that resolves with a String. Therefore, text is a String
  • fs.writeFile() also returns a promise that resolves with undefined.

Nicer syntax

Let p be a promise that eventually produces result r, let (r) => e be a function that takes r and produces a new promise.

p.then((r) => e);

can be rewritten

let r = await p;
e;

The reverse direction also works. In otherwords, we can rewrite our earlier API and file writing example as follows,

import fetch from "node-fetch";
import { promises } from "node:fs";

var args = process.argv;
if (args.length > 2) {
  var input = args[2];
  let response = await fetch(`https://postman-echo.com/get?x=${input}`);
  let text = await response.text();
  let res = await promises.writeFile("api_result.txt", text);
  console.log("The file has been saved!");
} else {
  console.log("USAGE: node index.js input");
}

which will be translated to the version with .then().

When we want to use await style programming in a function, we should declare the function as async. For instance, if we rewrite the above example, by moving the main routine in to a main function.

import fetch from "node-fetch";
import { promises } from "node:fs";

async function main(args) {
  if (args.length > 2) {
    var input = args[2];
    let response = await fetch(`https://postman-echo.com/get?x=${input}`);
    let text = await response.text();
    let res = await promises.writeFile("api_result.txt", text);
    console.log("The file has been saved!");
  } else {
    console.log("USAGE: node index.js input");
  }
}

main(process.argv);

User Defined Events

We can define customized events to trigger callbacks in Node.js.

For instance

import EventEmitter from "events";

const myEvtEmt = new EventEmitter();

myEvtEmt.on("start", (data) => {
  console.log(`data ${data} received`);
});

myEvtEmt.emit("start", 1);

we make use of the EventEmitter class imported from the events library. In the above code, we define an EventEmitter object myEvtEmt. Then we use .on() method to register a customized event start with a callback function, in this case the call back is an anonymous function taking the data and printing it out. In the third statement, we trigger the event by calling .emit() method.

In case the callback does not take any parameters, the .emit() will only be called with one argument, i.e. the event.

myEvtEmt.on("end", () => {
  console.log(`bye`);
});

myEvtEmt.emit("end");

When will the event loop stop?

For Node.js, some of the events are expecting a closure (closure as in general term, not JS closure), e.g. API call, file operation, the Node.js event loop will keep looping until all expected closures have returned and there is no more pending tasks in the micro nor the macro queues.

For browsers, the event loop will continue as it waits for the user's next input.

Further Readings

  • An interactive example showing how promise and callback works.
https://jakearchibald.com/2015/tasks-microtasks-queues-and-schedules/
  • Synchronous vs Asynchronous JavaScript – Call Stack, Promises, and More
https://www.freecodecamp.org/news/synchronous-vs-asynchronous-in-javascript/#:~:text=JavaScript%20is%20a%20single%2Dthreaded,language%20with%20lots%20of%20flexibility.
  • Node.js Event loop behavior
https://nodejs.org/en/docs/guides/event-loop-timers-and-nexttick
  • Node.js API for timer functions, setTimeout, setImmediate, setInterval.
https://nodejs.org/en/docs/guides/timers-in-node

Corhort Exercise (Graded)

Using the callstack-microtask-macrotask table, illustrate the execution of the following JavaScript program

import EventEmitter from "events";

const ev1 = new EventEmitter();
const ev2 = new EventEmitter();

let count = 0;

let promise1 = new Promise((resolve, reject) => {
  resolve(count);
});

let promise2 = new Promise((resolve, reject) => {
  resolve(count);
});

function foo(x) {
  return new Promise((resolve, reject) => {
    if (x > 10) {
      resolve();
    } else if (x % 2 == 0) {
      ev1.emit("run", ++x);
    } else {
      ev2.emit("run", ++x);
    }
  });
}

ev1.on("run", (data) => {
  setImmediate(() => {
    console.log(`data ${data} received by ev1`);
    promise2.then(foo(data));
  });
});

ev2.on("run", (data) => {
  setImmediate(() => {
    console.log(`data ${data} received by ev2`);
    promise1.then(foo(data));
  });
});

ev2.emit("run", count);
